AB-Tileable Default Extended Smart Noteblock Display

BDbottom-displaysBD010Updated Apr 22, 2026Archived Apr 22, 2026

✅FunctionalAuto ReplacementClosed Box Detection

Authors:Moonyinspired 🇧🇷CommandLeo

Endorsed by:Moonyinspired 🇧🇷

←→

1 / 2

View

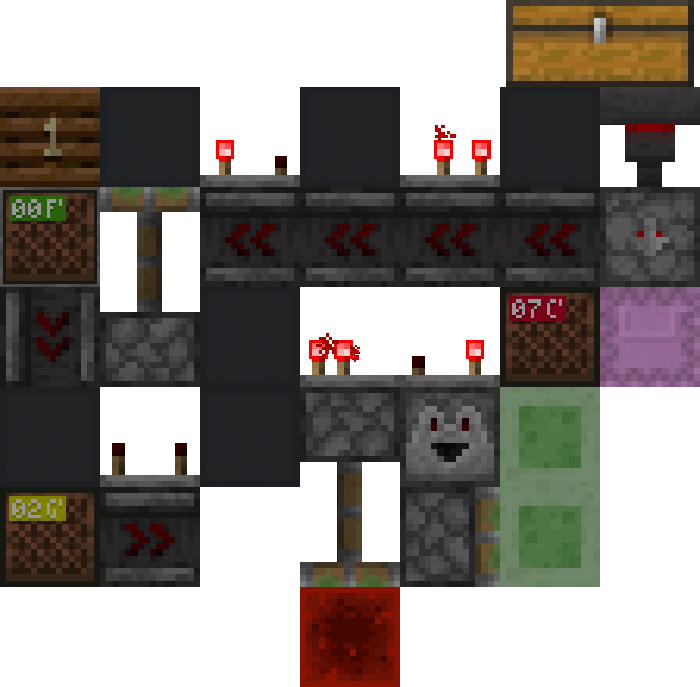

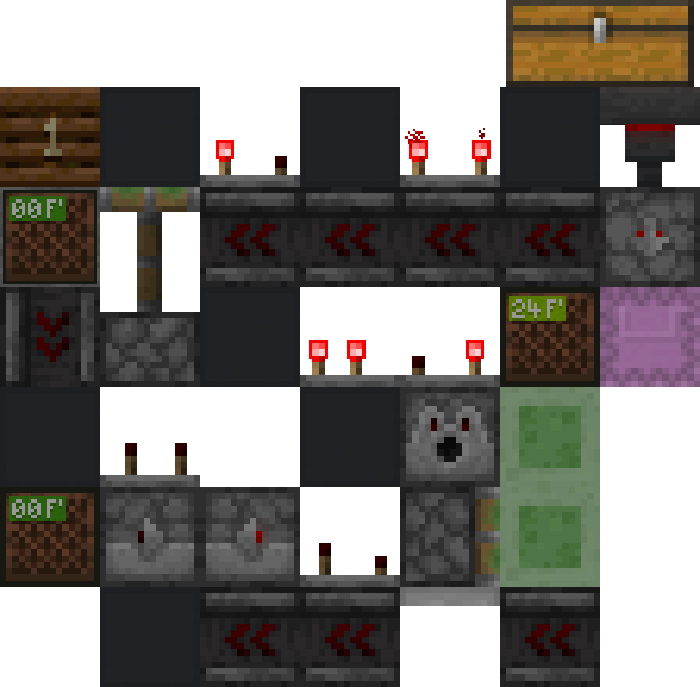

Compact shulker box smart displayDefinition: A Box Display that will only break the shulker box when it's both empty and closed. This will prevent the situation where the box breaks while you are looking inside of it. with manual first box placement. Uses BUDDefinition: A Block Update detector is a device that has something happen when it receives an update. Example: A piston that is Quasi-powered (Quasi connectivity) but not yet updated is called 'BUDded', and wi...s to detect when box is closed so breaking does not occur while players are browsing items.

Features

• Manual First box Placement by hitting the noteblock.
• Default extended Ui
• Only breaks the Shulker box when its both empty and closed.
• Smaller than previous designs. (7x7 with the chest)
• Chest Readout from both presented models.

Considerations

• On the Dropper Latch design, it may fail to break a box if you close it too quickly after emptying it. Opening it again does break the box.
• On both the piston designs, if you empty a sliceDefinition: A repeatable ( Preferably tileable ) component within a system. while the one beside it activated, it will break the box before you close it.

Notes

• While building, make sure to alternate between honey and slime blocks.
• On the dropper latch design, remember to put an item in the rightmost dropper.
• Dropper below comparator that reads the box can be swapped by any non-sticky full block (moss, glazed terracota, etc)
