Shulker Box Matcher

OBPother-box-processorsOBP005Updated Feb 18, 2026Archived Dec 18, 2025

✅Functional⭐Recommended

Authors:RaPsCaLLioN1138GlotzChristone

Endorsed by:Andrews54757

View

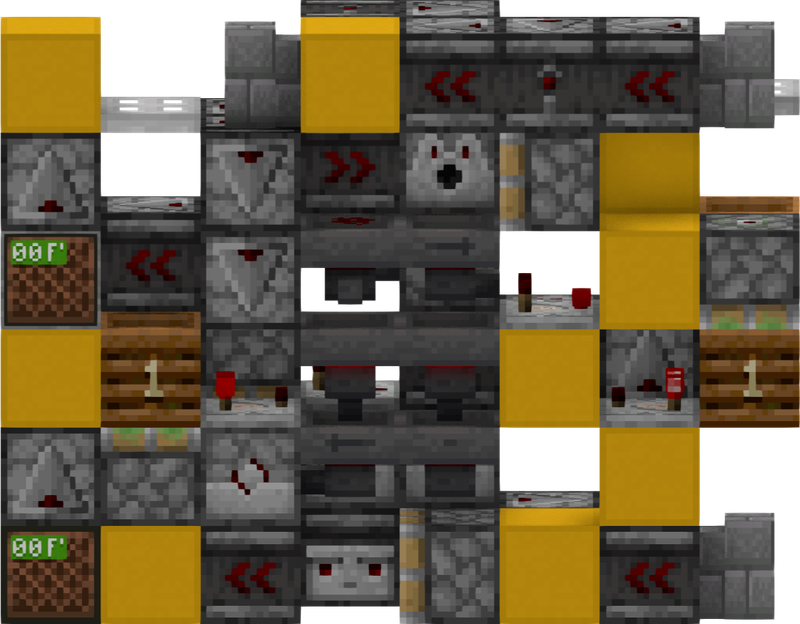

This tileable shulker box matcherDefinition: A box matcher is a device which checks if a specific item type is contained in a box. The box can be a mixed box, in which a match means that a slot in the box has the desired item type. Box matche... has a static filter in each sliceDefinition: A repeatable ( Preferably tileable ) component within a system. to check if the box contains the item set in the filter. If so, then the box will be output in the slice, otherwise the box moves to the next slice.

Features

• 2x6x8 (single slice)
• true 2-wide tileable
• Input boxes at hopper speedDefinition: Refers to the speed at which items are processed in a hopper (1 item every 8gt, or 2.5 items per second). Usually written as an integer (e.g. '3x hopper speed'). ## Common hopperspeeds 1x: 9000 ite...: 8gtDefinition: Minecraft iteratively runs its processing code in a loop. One cycle of this loop is called a Tick or Gametick (gt). Gameticks are also used as the default measurement of time while working with re...

Instructions

1. Set up filters by putting 18 items of the item you want to filter in the hopper below the box dispensing area. The rest of the slots should be filled with one 64-stackable blocker item each. Do this for all of your slices.
2. Then, you can insert boxes to sort into the hopper feeding the dropper/dispenser (read by a comparator) by using another hopper to push items inside of it.
