Archive Entry

Hyperthreaded Whitelister Temp

VBSvariable-box-processingVBS003Updated Feb 18, 2026Archived Nov 18, 2025

✅Functional

Authors:TisUnfortunate

Endorsed by:Andrews54757

View

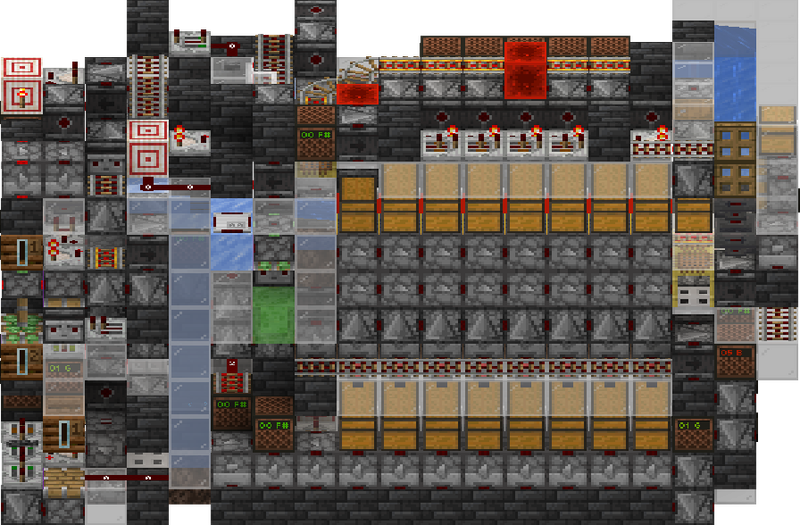

A device that can store up to 400 unique partials, with a compact design and various features for efficient operation.

Features

• Can store up to 400 unique partials (50 per sliceDefinition: A repeatable ( Preferably tileable ) component within a system.)
• Compact(6x11x19)
• HyperthreadDefinition: Pipelining (also referred to as hyperthreading), is design paradigm where a process with multiple steps can occur simultaneously with another process at a later stage. A process here can refer to a...ed Box Retrieval next box begins processing while previous bucketDefinition: A bucket is a container, typically holding a specific subset of items. Buckets are used to fragment large bodies of information into callable and searchable subsets to speed up a search process by ... is being returned
• 38 hoppers
• Paired Partials output to water stream
• Accessible Temp Chests
• Random Input Proof
• Handles non-whitelisted inputs
• Whitelisting Cart yeetDefinition: A cart yeeter is a device which breaks a cart with an inventory, emptying its contents in item entity form. The cart item is also collected separately for recycling. Cart yeeting was introduced in ...ed after use

Considerations

• the hopper on top of the grouperDefinition: A grouper is a variable box sorting device, which checks if a box contains a specific item type anywhere in the box. This is similar to a box matcher, but instead of having a fixed filter which is ... and the block of water before it must be in the same chunk
• No Empty Box or loose item input protection
• processing time is ~linearly related to # of boxes in bucket. The more items allocated to a slice, the slower it can be (207gtDefinition: Minecraft iteratively runs its processing code in a loop. One cycle of this loop is called a Tick or Gametick (gt). Gameticks are also used as the default measurement of time while working with re... for no boxes in bucket to ~715gt for 49 boxes in bucket).
