400 Item Matrix Temp Storage

VBSvariable-box-processingVBS006Archived Mar 08, 2026

✅Functional⭐Recommended

Authors:TisUnfortunateRagdoll WillyXP_Botgiannis__DNatorAndrews54757

Endorsed by:Andrews54757

View

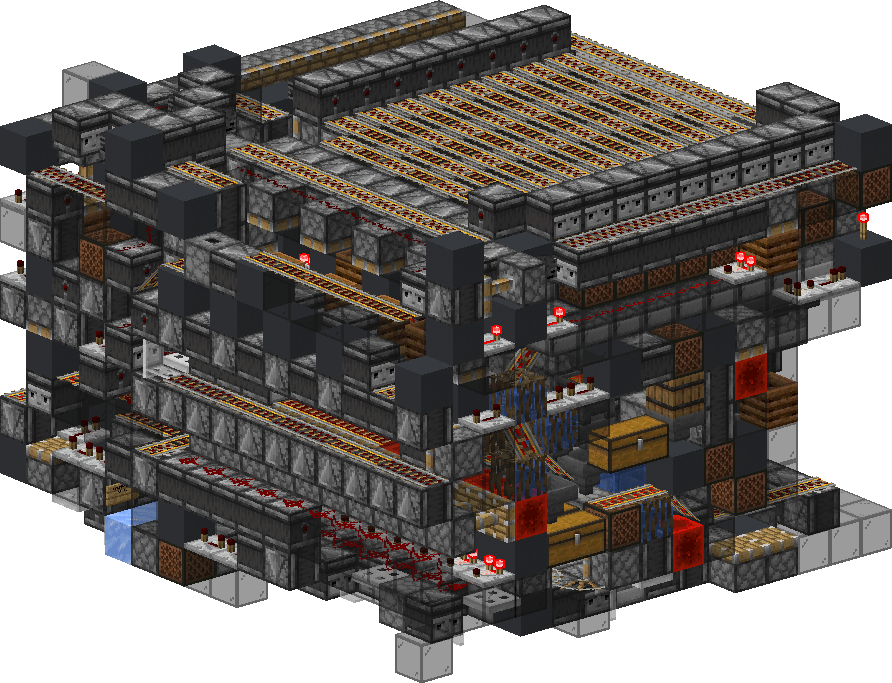

Uses two whitelisterDefinition: A whitelister or blacklister is typically a device which checks if the first item in a single-type box is within some set or list of item types. Whitelisters/blacklisters are useful for quickly det...s in a grid layout to store up to 400 partial boxes in 40 individually addressable droppers. Only 10 partials are stored in each dropper+hopper, making retrieval very fast (170gtDefinition: Minecraft iteratively runs its processing code in a loop. One cycle of this loop is called a Tick or Gametick (gt). Gameticks are also used as the default measurement of time while working with re...) compared to disk drive temps. When you put in a box it will empty entire dropper with item, and put the boxes through a grouperDefinition: A grouper is a variable box sorting device, which checks if a box contains a specific item type anywhere in the box. This is similar to a box matcher, but instead of having a fixed filter which is .... If there is matching box, both are output as pair, otherwise it stores the box in the dropper for later matching.

Features

• Up to 400 item types
• 170gt fixed throughput for whitelisted input.
• 60gt fixed throughput for unwhitelisted input.
• Outputs unwhitelisted boxes separately.
• Fits in one chunk: 16x11x15

Notes

Because of how fast the unwhitelisted input throughput is (60gt), this device can be used as your main whitelister for bulk/chest hallDefinition: A hall containing chests for items. It usually come in slices(slice) so that it can be stacked and extended as large as needed. They differ widely in functionality and amount of items available in ..., provided that you are okay with full boxes being in the temp. This is very rare anyways, so it may be an acceptable compromise.

Designed on Soontech CMP

Compatibility

1.21+

Instructions

1. Set up whitelister chests with the item types you want to have in the temp
2. Put in partial boxes (each with a single type) into the input (barrel)
3. If unwhitelisted box, then it will be output out on one side. If whitelisted, it will output pairs on the other side.
