32X and 64X Compact Ideal Splitter

VIPvariable-item-processingVIP003Updated Mar 06, 2026Archived Dec 21, 2025

✅Functional⭐Recommended

Authors:

Andrews54757

Endorsed by:

Andrews54757

1 / 2

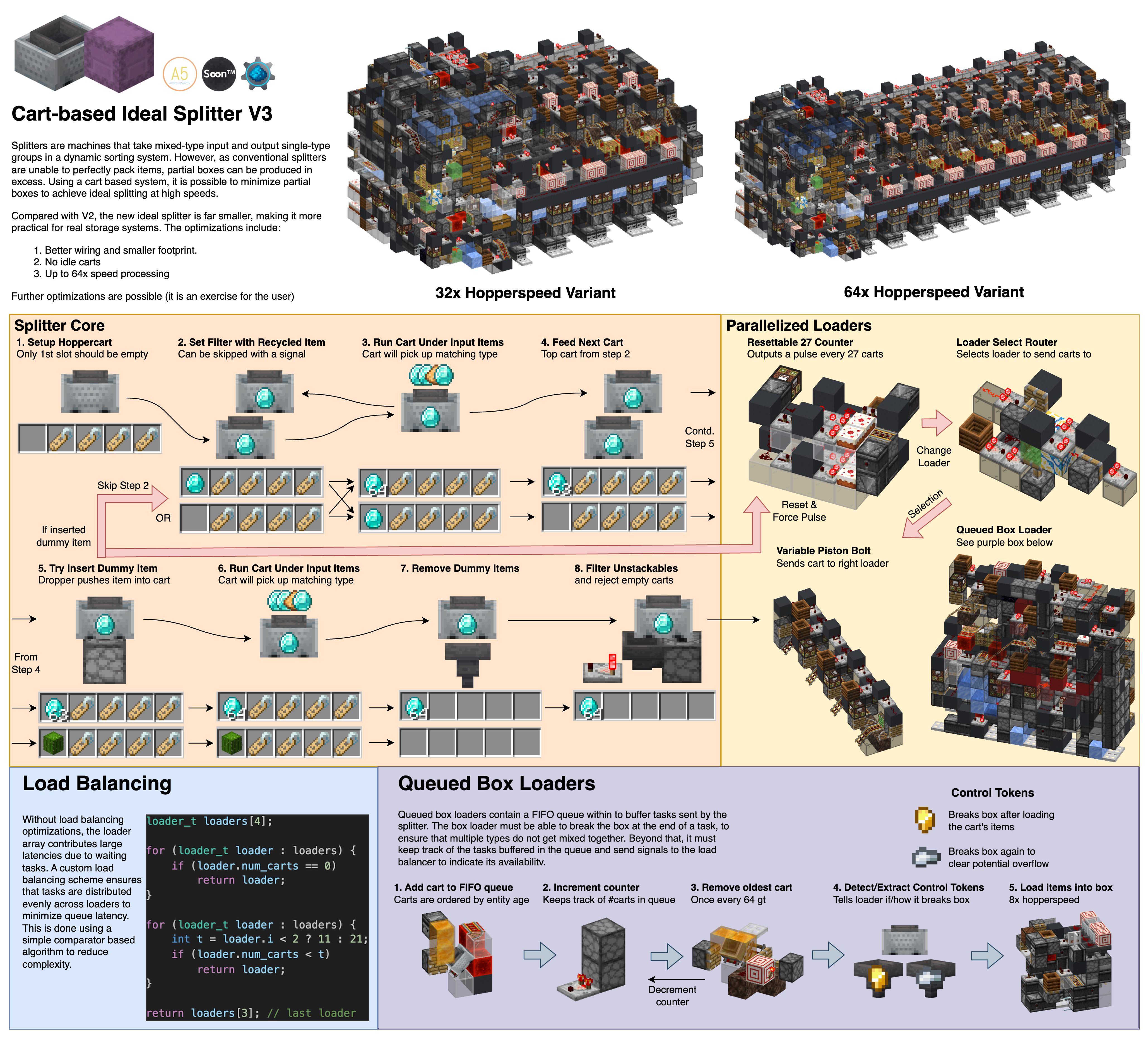

Split mixed boxes into single type boxes. Produces minimum partial boxesDefinition: Ideal box output refers to a device which outputs minimal partial boxes after the contents of mixed boxes are sorted into single item-type boxes. What this means is that for each type, every box ex.... Up to 64x hopperspeedDefinition: Refers to the speed at which items are processed in a hopper (1 item every 8gt, or 2.5 items per second). Usually written as an integer (e.g. '3x hopper speed'). ## Common hopperspeeds 1x: 9000 ite.... 32x variant included in WDL.

Features

No idle hoppercarts and locked loaderDefinition: A contraption that fills a shulkerbox with items and then breaks the shulkerbox. hoppers
Cart based box unloaderDefinition: A contraption that removes item contents from a shulkerbox. and item refresher
Compact form factor. 43x16x14 for 64x version, 27x16x14 for 32x version.

Considerations

Lag from entities scale quadratically with the amount of items input in a single batch, we recommend limiting batch sizes to a double chest of shulker boxes.

Notes

Developed on SoonCMP ("Ideal SplitterDefinition: A box splitter is a contraption that takes in a mixed box as input and unloads the box into single item-type boxes. These devices work by unloading a box using a variable filter. The variable filte..." waypoint). Showcase video
